Are you new to the world of plumbing essentials?
Have you heard of a plumbing essential gear – camlock fittings?
Are you curious about learning the details of this ultimate mechanical coupler device?
Then you have come to the right place!
We have gathered everything possible to help you understand.
Get started!
What Are Camlock Fittings?
Camlock fittings, or cam and groove couplings, are mechanical devices that facilitate quick and secure connections between hoses, pipes, and valves in plumbing systems.
Its unique design allows for swift coupling and uncoupling without compromising sealing integrity, making camlock fittings a preferred choice in various industries, including plumbing.
It’s Anatomy
To comprehend camlock fittings’ functionality, one must familiarize oneself with their anatomy.
Male Adapter:
- Facilitates quick hose coupling/disconnection for low-pressure discharge or suction applications.
Female Coupler:
- Completes the connection when the male adapter is inserted.
- The second piece of the coupler connection.
Handles:
- Featured on couplers for easy handling and firm closure upon connection establishment.
Gaskets/Seals:
- Prevents leakage under heavy compression.
Locking Mechanism:
- Modern fittings feature an automatic locking mechanism integrated into the cam arms.
Types of Camlock Fittings:
Types of Camlock Fittings Based On Materials:
Primarily made of stainless steel with coatings like PFA, PVDF, PTFE, and ECTFE for high resistance.
- Aluminum Camlock Fittings:
Highly portable and lightweight.
Affordable option, suitable for water, hydraulic oil, and petroleum industries.
- Stainless Steel Camlock Fittings:
Durable and resistant to extreme temperatures.
Ideal for applications involving corrosive chemicals.
- Brass Camlock Fittings:
Durable with anti-corrosive properties.
Commonly used in marine applications and is compatible with various fluids like water, hydraulic oils, and petroleum products.
- Polypropylene Camlock Fittings:
Inexpensive yet durable.
Suitable for handling tough chemicals.
- Nylon Camlock Fittings:
Similar durability to polypropylene with enhanced resistance to chemicals, liquid corrosion, and temperature levels.
- PTFE (Teflon) Camlock Fittings:
Known for chemical resistance properties.
Ideal for pharmaceutical, food and beverage, and chemical processing applications.
Various Configurations Of Camlock Fittings:
- Type A:
Features a male adapter with a female thread.
- Type B:
Includes a female coupler with a male thread.
- Type C:
Consists of a hose and coupler barb (shank).

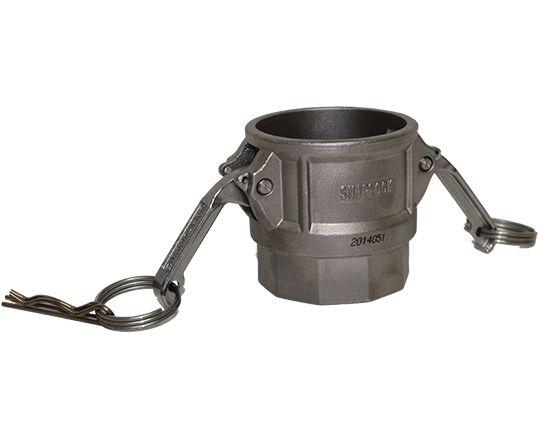

- Type D:
Comprises a male coupler with a female thread.
- Type E:
Constructed with a shank and an adapter.
- Type F:
Equipped with a female adapter and male threads.
- Type DC:
Dust caps, also known as female caps.
- Type DP:
Dust plugs, also known as male plugs.
What Are Its Benefits?
The widespread adoption of camlock fittings in plumbing can be attributed to their numerous benefits:
- Rapid Installation:
Camlock fittings enable swift assembly and disassembly, minimizing downtime during plumbing installations or repairs.
- Versatility:
With various types and sizes available, these fittings offer versatility to accommodate different pipe diameters and fluid types, enhancing adaptability in diverse plumbing applications.
- Leak-Free Sealing:
The robust cam and groove design ensures a tight seal, preventing leaks and minimizing the risk of fluid loss or contamination.
- Durability:
Crafted from high-quality materials, camlock fittings exhibit exceptional durability and resistance to corrosion, prolonging their service life even in harsh plumbing environments.
- Cost-Effectiveness:
Camlock fittings contribute to long-term cost savings by streamlining installation and maintenance processes, making them a cost-effective solution for plumbing projects of any scale.
How Does It Work?
Camlock fittings’ functionality hinges on their ingenious design, simplifying the coupling process while maintaining a tight seal.
- To connect two components, simply insert the male adaptor’s cam arms into the grooves of the female coupler and press them together until fully engaged.
- The cam arms lock into place securely, creating a leak-proof connection that withstands high pressures and fluid flow.
- Conversely, disconnecting camlock fittings is just as straightforward – release the cam arms, and the components disengage effortlessly, allowing for swift maintenance or reconfiguration of plumbing systems.
What Is a Camlock Fitting Used For?
Camlock fittings are among the most popular couplings globally. Here are some real-world examples:
- Oil Distribution:
Camlocks are standardized connectors for delivering petrol to service stations and homes, mostly seen on petrol tanker trucks and fuel dispensers.
- Military:
Aluminum, anodized camlock fittings are approved for use by NATO forces worldwide for agile tactical deployment and military operations.
- Agriculture:
Crafted from acid-resistant materials, they are ideal hose connectors for irrigation and spraying in agricultural settings.
- Paints, Inks, and Dyes:
Camlock fittings tolerate multiple coatings without damaging seals, making them invaluable in the manufacture of paints, inks, and dyes. They also facilitate quick hose and pipe changes.
- Cleaning:
Industrial cleaning applications offer a quick and efficient solution. They are preferred over storing and transporting hoses.
